Double skin tanks for aboveground storage diesel fuel UNI EN 12285-2
Description
Double skin tanks for aboveground storage diesel fuel manufactured in accordance with UNI EN 12285-2 norms of 2005 class A.

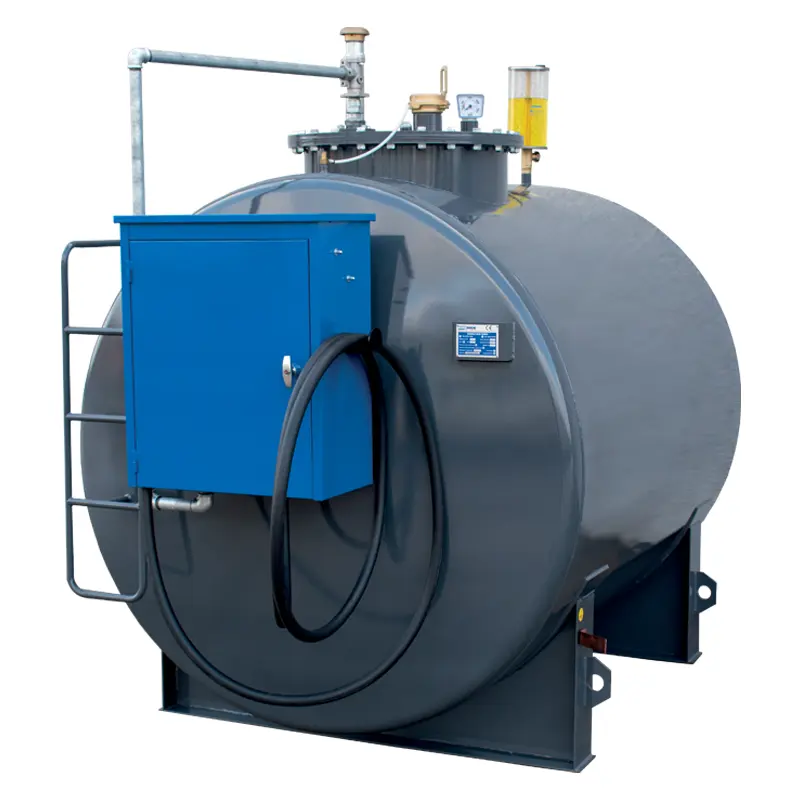

HORIZONTAL CYLINDRICAL TANK WITH DOUBLE WALL FOR ABOVEGROUND DEPOSITS OF FLAMMABLE AND NON-FLAMMABLE LIQUIDS THAT CAN POLLUTE WATER. UNI EN 12285-2 2005 CLASS A.
Built in carbon steel (first sheet S235JR UNI EN 10025) with cylindrical horizontal axle, welded be tween the parties, It submitted for testing ydraulic tightness.
TECHNICAL FEATURES
FEATURES AND EQUIPMENT
- Manhole diameter 745 mm with outer flange thickness 15 mm, complete with rubber gasket, 24 bolts and flanges.
- 3” lockable rapid coupling ring-nut, with load-limiting valve calibrated at 90% of the tank geometric capacity.
- 1”-1/2 pressure relief valve with flame-breaker mesh
- External Level indicator
- Stair of access to the load
- 2 lifting handles.
- Roll-away support saddles in accordance with UNI EN 12285
- Hoocks for anchoring
- Leak control device LAS 72 with glycol already in the cavity.
- Outer coating with anit-rust paint and finally a layer of enamel
- CERTIFICATE OF THE TIGHTNESS TEST, Metrics tables Identification plate.
- A wide range of dispensing unit
FUEL DISPENSER BOX WITH
- electric pump
- digital fuel meter
- filter
- flexible hose with connection 6 m length
- automatic nozzle with swivel
- on/off electric switch

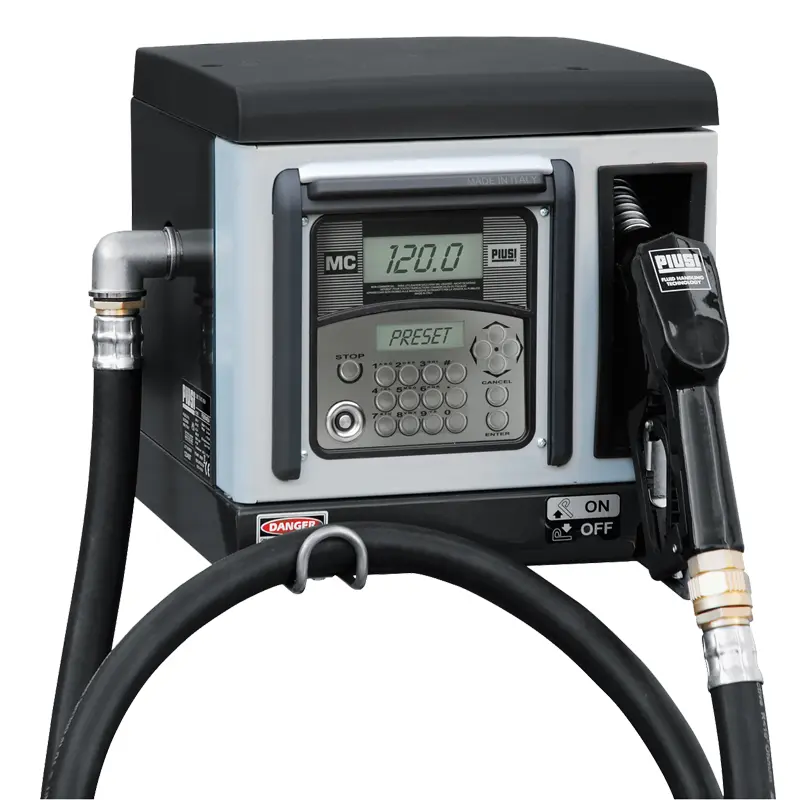

MULTI USER DIESEL FUEL DISPENSER CUBE MC
- electric pump
- digital fuel meter with multi user dispenser
- flexible hose with connection 6 m length
- automatic nozzle with swivel
- on/off electric switch
- kit user keys with software
AVAILABLE ITEMS & DETAILS
| Art. | Tank capacity (litri) | External diameter (mm) | Tank length (mm) | Wall thickness inner-outer (mm) | Number saddle | Tank Weight (Kg) |
|---|---|---|---|---|---|---|
| CDE3 | 3.000 | 1.600 | 1.700 | 5 + 3 | 2 | 900 |
| CDE4 | 4.000 | 1.600 | 2.550 | 5 + 3 | 2 | 1.000 |
| CDE5 | 5.000 | 1.600 | 2.850 | 5 + 3 | 2 | 1.200 |
| CDE6 | 6.000 | 1.600 | 3.200 | 5 + 3 | 2 | 1.400 |
| CDE8 | 8.000 | 1.600 | 4.200 | 5 + 3 | 2 | 1.700 |
| CDE9 | 9.000 | 1.600 | 4.800 | 5 + 3 | 2 | 1.900 |
| CDE10 | 10.000 | 1.600 | 5.200 | 5 + 3 | 2 | 2.000 |
| CDE12 | 12.000 | 1.600 | 6.200 | 5 + 3 | 2 | 2.500 |
| CDE15 | 15.000 | 2.000 | 5.000 | 6 + 3 | 2 | 2.900 |
| CDE20 | 20.000 | 2.000 | 6.600 | 6 + 3 | 2 | 3.600 |
| CDE25 | 25.000 | 2.000 | 8.300 | 6 + 3 | 2 | 4.500 |
| CDE30 | 30.000 | 2.500 | 6.500 | 6 + 4/5 | 2 | 5.000 |
Manhole with connections, n° 24 bolt and seals
Support saddles UNI EN 12285 - 2
Leak control device
Ladder
